Specifications
General Information
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | GV-R66EAGLE-8GD |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Gigabyte |
| Product Model | GV-R66EAGLE-8GD |

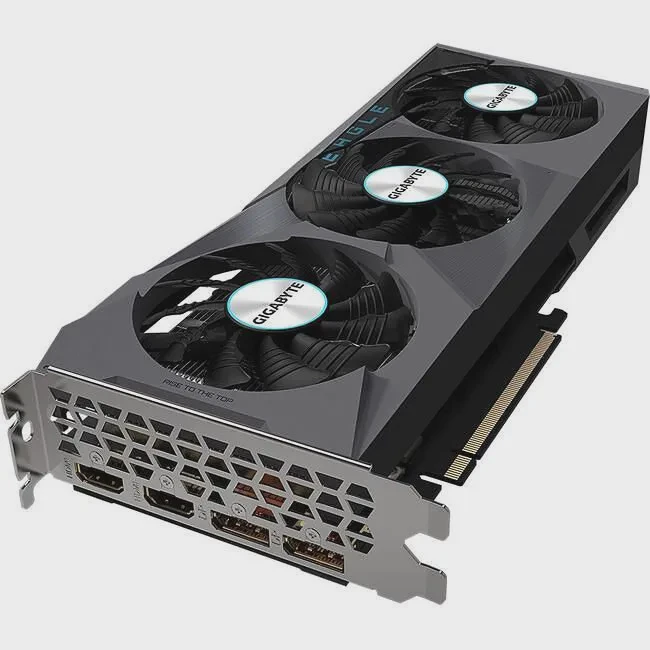

| Product Name | Radeon RX 6600 EAGLE 8G Graphic Card |
| Product Type | Graphic Card |
Technical Information
| API Supported | DirectX 12 Ultimate |
| OpenGL 4.6 | |
| Maximum Digital Display Resolution | 7680 x 4320 |
| Number Of Monitors Supported | 4 |
Processor & Chipset
| Chipset Manufacturer | AMD |
| Chipset Line | Radeon |
| Chipset Series | RX 6000 |
| Chipset Model | RX 6600 |
| GPU Boost Clock | 2.49 GHz |
| GPU Clock | 2.04 GHz |
Memory
| Standard Memory | 8 GB |
| Memory Technology | GDDR6 |
| Bus Width | 128 bit |
Interfaces/Ports
| Host Interface | PCI Express 4.0 x8 |
| DisplayPort | Yes |
| Number Of DisplayPort Outputs | 2 |
| HDMI | Yes |
| Number Of HDMI Outputs | 2 |
Power Description
| Power Supply Wattage | 500 W |
| Power Connector | 1x 8-pin |
Physical Characteristics
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 1.6" |
| Width | 4.4" |
| Length | 11.1" |
Miscellaneous
| Package Contents | Radeon RX 6600 EAGLE 8G Graphic Card |
| Quick Guide | |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) |
Warranty
| Limited Warranty | 3 Year |
