Specifications
General Information
| Manufacturer | Sapphire, Inc |
| Manufacturer Part Number | 11241-00-20G |
| Manufacturer Website Address | http://www.sapphiretech.com |
| Brand Name | Sapphire |
| Product Line | Tri-X |

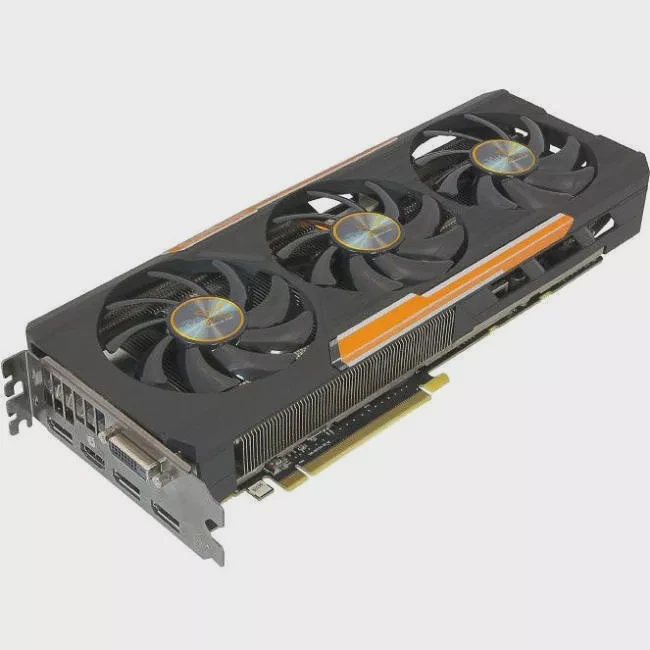

| Product Name | Tri-X AMD Radeon R9 390X Graphic Card |
| Product Type | Graphic Card |
Technical Information
| API Supported | DirectX 12 |
| OpenGL 4.5 | |
| OpenCL 2.0 | |
| Multi-GPU Technology | CrossFire |
| Number Of Monitors Supported | 5 |
Processor & Chipset
| Chipset Manufacturer | AMD |
| Chipset Line | Radeon |
| Chipset Series | R9 300 |
| Chipset Model | R9 390X |
| GPU Clock | 1.06 GHz |
Memory
| Standard Memory | 8 GB |
| Memory Technology | GDDR5 |
| Bus Width | 512 bit |
Interfaces/Ports
| Host Interface | PCI Express 3.0 |
| DisplayPort | Yes |
| Number Of DisplayPort Outputs | 3 |
| DVI | Yes |
| Total Number Of DVI Outputs | 1 |
| HDMI | Yes |
| Number Of HDMI Outputs | 1 |
Physical Characteristics
| Slot Space Required | Dual |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 1.7" |
| Width | 5" |
| Length | 12.1" |
Miscellaneous
| System Requirements | 750 Watt Power Supply (Suggestion) |
| 2 x 8-pin AUX Power Connector | |
| 4 x 8-pin AUX Power Connector is required for CrossFireX™ system. | |
| System power supply with two 8-pin PCIe® power connectors that are each capable of supplying 28 A of dedicated current | |
| CD-ROM or DVD-ROM drive for installing software | |
| To support 4 displays, one of the monitors has to support DisplayPort | |
| PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. | |
| Platform Supported | PC |
