Specifications
General Information
| Manufacturer | Sapphire, Inc |
| Manufacturer Part Number | 21234-00-40G |
| Manufacturer Website Address | http://www.sapphiretech.com |
| Brand Name | Sapphire |

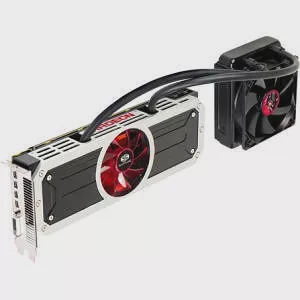

| Product Name | Radeon R9 295X2 Graphic Card |
| Product Type | Graphic Card |
Technical Information
| Digital Signal | Yes |
| API Supported | DirectX 11.2 |
| OpenGL 4.3 | |
| Mantle | |
| Multi-GPU Technology | CrossFireX |
| Number of Monitors Supported | 5 |
| Features | Stream Technology |
| Avivo HD Technology | |
| AMD HD3D Technology | |
| Graphics Core Next (GCN) | |
| Eyefinity 2.0 | |
| TrueAudio Technology | |
| Enhanced Unified Video Decoder 3 (UVD3) | |
| PowerPlay Technology | |
| ZeroCore Power Technology | |
| HD Media Accelerator | |
| PowerTune Technology |
Processor & Chipset
| Chipset Manufacturer | AMD |
| Chipset Line | Radeon |
| Chipset Series | R9 200 |
| Chipset Model | R9 295X2 |
| Number Of GPUs | 2 |
| GPU Clock | 1.02 GHz |
| Number Of Stream Processors | 5632 |
Memory
| Standard Memory | 8 GB |
| Memory Speed | 5000 MHz |
| Memory Technology | GDDR5 |
| Bus Width | 1024 bit |
Interfaces/Ports
| Host Interface | PCI Express 3.0 x16 |
| DVI | Yes |
| Total Number Of DVI Outputs | 1 |
| Dual Link DVI Supported | Yes |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort Outputs | 1 |
Physical Characteristics
| Slot Space Required | Dual |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 41.3" |
| Thickness | 1.5" |
| Length | 12.1" |
Miscellaneous
| System Requirements | PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. |
| Certified power supplies are recommended. Please refer to: http://support.amd.com/us/certified/power-supplies/Pages/listing.aspx | |
| 8192 MB Minimum of system memory. | |
| Installation software requires CD-ROM drive. | |
| DVD playback requires DVD drive. | |
| Blu-ray™ / HD DVD playback requires Blu-ray / HD DVD drive. | |
| A display with digital input (HDMI, DisplayPort or DVI) is required | |
| System power supply with two 8-pin PCIe® power connectors that are each capable of supplying 28 A of dedicated current | |
| System case with at least one location for a screw-mounted, 120 mm × 120 mm chassis fan. The case should also allow appropriate air flow and cooling of all system components | |
| Operating System(s): | |
| Windows Vista | |
| Windows 7 | |
| Windows 8 | |
| Platform Supported | PC |
