Specifications
General Information
| Manufacturer | XFX Technologies, Inc |
| Manufacturer Part Number | RX-57XL8MFG6 |
| Manufacturer Website Address | http://www.xfxforce.com |
| Brand Name | XFX |
| Product Model | RX-57XL8MFG6 |

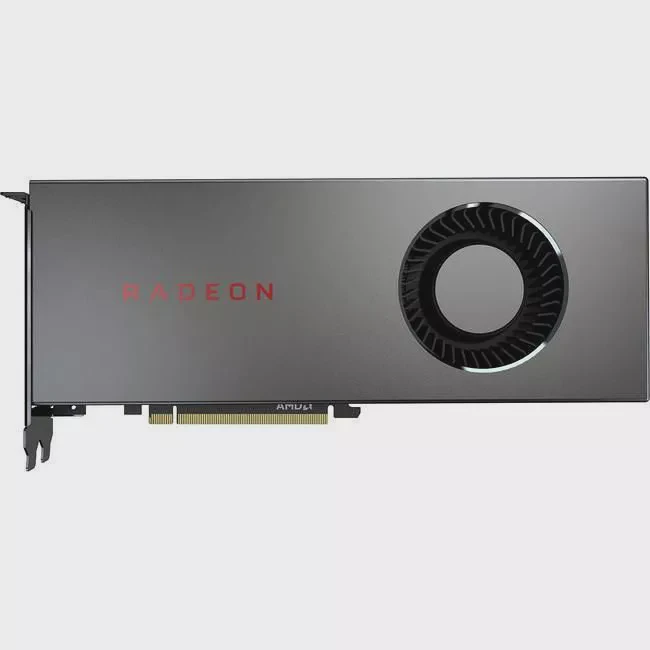

| Product Name | Radeon RX 5700 Graphic Card |
| Product Type | Graphic Card |
Technical Information
| API Supported | DirectX 12 |
| Vulkan | |
| Mantle | |
| OpenGL 4.5 | |
| OpenCL | |
| Number of Monitors Supported | 6 |
| Multi-GPU Technology | CrossFire |
Processor & Chipset
| Chipset Manufacturer | AMD |
| Chipset Line | Radeon |
| Chipset Model | RX 5700 |
| GPU Clock | 1.47 GHz |
| GPU Boost Clock | 1.73 GHz |
Memory
| Standard Memory | 8 GB |
| Memory Technology | GDDR6 |
| Bus Width | 256 bit |
Interfaces/Ports
| Host Interface | PCI Express 4.0 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
Physical Characteristics
| Slot Space Required | Dual |
| Form Factor | Plug-in Card |
| Cooler Type | Active Cooler |
| Height | 1.6" |
| Thickness | 4.4" |
| Length | 10.5" |
Miscellaneous
| Package Contents | Radeon RX 5700 Graphic Card |
| 1 x 8-pin to 6-pin Power Cable | |
| 1 x 6-pin to 4-pin Power Cable | |
| 1 x Driver Disk Installation Guide | |
| 1 x Installation DVD | |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty
| Limited Warranty | 2 Year |
