Specifications
General Information
Manufacturer
Samsung
Manufacturer Part Number
S19C200BR
Manufacturer Website Address
http://www.samsung.com/us
Brand Name
Samsung
Product Model
S19C200BR
Product Name

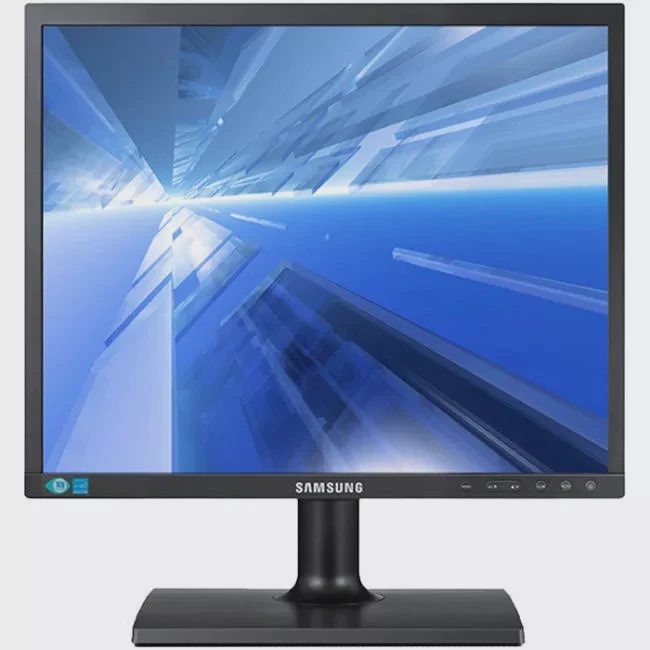

S19C200BR LCD Monitor
Product Type
LCD Monitor
Technical Information
Number of Screens
1
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
SXGA
Panel Technology
Twisted Nematic Film (TN Film)
Response Time
5 ms
Aspect Ratio
5:4
Horizontal Viewing Angle
170°
Vertical Viewing Angle
160°
Adjustable Display Angle
Yes
Mount Type
Wall Mountable
Backlight Technology
LED
Tilt Angle
1° to 20°
Features
Video
Maximum Resolution
1280 x 1024
Color Supported
16.7 Million Colors
Contrast Ratio
1,000:1
Brightness
250 Nit
Audio
Speakers
No
Interfaces/Ports
DVI
Yes
HDMI
No
VGA
Yes
DisplayPort
No
Power Description
Input Voltage
Operating Power Consumption
19 W
Standby Power Consumption
100 mW
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
100 x 100
Color
Matte Black
Height
13.2"
Width
16"
Depth
3"
Height with Stand
16.50"
Width with Stand
16.02"
Depth with Stand
6.69"
Weight (Approximate)
6.50 lb
Weight with Stand (Approximate)
7.17 lb
Miscellaneous
Package Contents
- S19C200BR LCD Monitor
- VGA Cable
- DVI Cable
- 1.5 m Power Cable
- E-Manual
- Install CD
- Quick Setup Guide
Certifications & Standards
- UL: UL 60950-1
- CSA: CSA C22.2 No. 60950-1
- TUV: EN60950-1
- NEMKO: EN60950-1
- KC: K60950-1
- CCC: GB 4943-2001
- PSB: IEC60950-1
- GOST: IEC60950-1, EN55022
- SIQ: IEC60950-1, EN55022
- PCBC: IEC60590-1, EN55022
- NOM: NOM-019-SCFI-1993
- IRAM:IEC60950-1
- SASO: IEC60950-1
EMC:
- FCC: FCC Part 15, Subpart B class A
- CE: EN55022, EN55024
- VCCI: V-3 (CISPR22)
- KCC:KN22, KN24
- C-Tick: AS/NZS3548 (CISPR22)
- CCC:GB 9254-2008, GB 17625.1-2003
Platform Supported
PC
Energy Star
Yes
Country of Origin
Mexico
TCO Certified
Yes
Environmentally Friendly
Yes
Environmental Certification
Energy Efficiency Certification
ENERGY STAR 6.0
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
