Specifications
General Information
Manufacturer
Acer, Inc
Manufacturer Part Number
UM.FB6AA.003
Manufacturer Website Address
http://us.acer.com
Brand Name
Acer
Product Series
B
Product Model
B246WL
Product Name

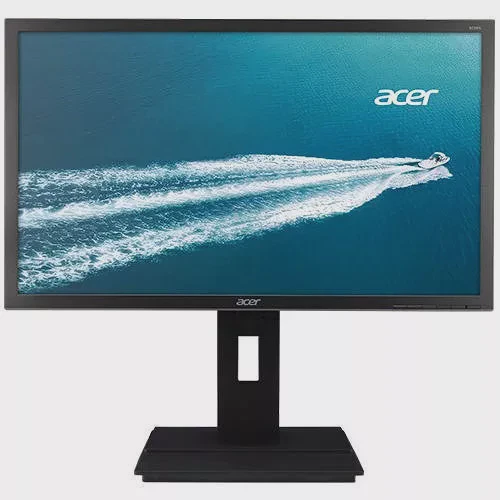

B246WL Widescreen LCD Monitor
Product Type
LCD Monitor
Technical Information
Number of Screens
1
Screen Size Class
24"
Viewable Screen Size
24"
Screen Mode
WUXGA
Panel Technology
In-plane Switching (IPS) Technology
Response Time
5 ms
Response Time Details
5ms GTG
Aspect Ratio
16:10
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Adjustable Display Pivot
Yes
Backlight Technology
LED
Maximum Adjustable Height
5.91"
Tilt Angle
-5° to 35°
Swivel Angle
60°
Video
Maximum Resolution
1920 x 1200
Standard Refresh Rate
60 Hz
Color Supported
16.7 Million Colors
Contrast Ratio
100,000,000:1
Brightness
300 Nit
Audio
Number of Speakers
2
Speakers
Yes
Speaker Output Power
2 W
Interfaces/Ports
DVI
Yes
USB
Yes
VGA
Yes
DisplayPort
Yes
Number of USB 3.0 Upstream Ports
1
Number of USB 3.0 Downstream Ports
4
Built-in Devices
Built-in Devices
USB Hub
Power Description
Standby Power Consumption
450 mW
Off-Mode Power Consumption
350 mW
Operating Power Consumption (Energy Star)
52 W
Physical Characteristics
VESA Mount Standard
100 x 100
Color Family
Gray
Color
Dark Gray
Height
14"
Width
21"
Depth
2.1"
Height with Stand
21.42"
Width with Stand
21.02"
Depth with Stand
8.70"
Weight (Approximate)
8.16 lb
Weight with Stand (Approximate)
13.89 lb
Miscellaneous
Package Contents
- B246WL Widescreen LCD Monitor
- DVI Cable
- 1 x DisplayPort Cable
- Power Cord
- 1 x VGA Cable
- 1 x USB 3.0 Cable
Country of Origin
China
TCO Certified
Yes
Environmentally Friendly
Yes
Environmental Certification
TCO Certified
Warranty
Limited Warranty
3 Year
Additional Warranty Information
Free
